SHH-B2A Automatic Corrugated Box Folder Gluer Machine

Descriptions:

SHH - B2A Automatic Corrugated Box Folder Gluer Machine: Boasting a highly efficient pneumatic system, it precisely controls the pressure and movement of folding and gluing mechanisms. The machine frame is constructed with robust, anti-corrosive materials, ensuring durability and stability even in harsh industrial environments. Its unique creasing unit applies consistent and accurate creases, enhancing the overall quality of the corrugated boxes. With a built-in safety interlock system, it provides a secure working environment for operators, minimizing the risk of accidents. The high-speed operation of this machine, combined with its low energy consumption, offers an optimal balance between productivity and cost-effectiveness, making it a favored choice for large-scale corrugated box manufacturing operations.

Name	SHH-B2A Automatic Corrugated Box Folder Gluer Machine
Model	SHH-1050/1250/1450/1650/1850/2050B2A
Paper Material	Cardboard 200-800g A/B/C/E/F-flute
Max. Liner speed	Max. 220 meter/minute
Feeding way	Automatically and continuously feeding
Way of folding	Fold 2 and fold 4 are 180°,
Glue Material	Water-base cold glue
Electric power	11.5KW 380V 50HZ 3P
Weight	3400(3800)(4200)KG 1050/1250/1450B2A 4800(5200)(5600)KG 1650/1850/2050B2A
Over dimension	12500 x1600(1800)(2000)x 1400mm 1050/1250/1450B2A 14500 x2200(2400)(2600)x 1400mm 1650/1850/2050B2A

Feature introduction

	Feeding Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
Alignment Alignment section, which automatically corrects the box after it is ejected from the paper feed section
	Folding Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Full pressing With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
	Transmission Equipped with feeding paper inspection device. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
The Grinding part More effective treatment of paper surface UV, the carton adhesive more stronger

Machine Optional configuration list
	Optional Spraying System (water-base cold) For irregular box, Need Extra Spraying System. Equipped with three guns, convenient in the production various special box, gluing quickly and accurately sizing. (Options: customized on user order)
Optional hot melt system The tank less hot melt system is designed for melting and pumping of thermoplastic hot melt in granulate form. It gently melts on demand and therefore is applicable for both high and low glue consumption applications. Optional volume control monitors changes in adhesive consumption. Thanks to the fast heat-up time of 16 minutes to 160 °C the Concept Stream is quickly operational. In addition, the adhesive system achieves a high melting rate performance of 8 kg/h or 15 kg/h with minimum space.
	Optional Plasma system Through surface coating treatment,to strengthen the adherence and make cartons easier to be glued.

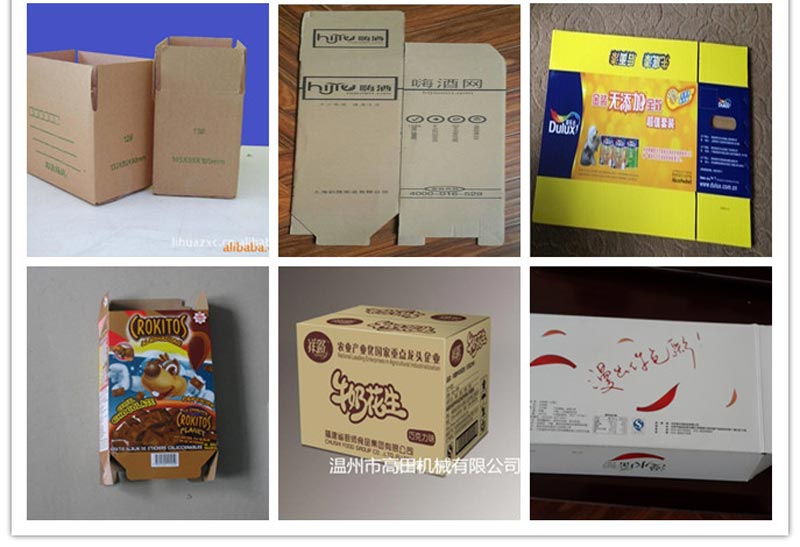

Samples

Flat box type and size ：(mm)
Model	1050B2A	1250B2A	1450B2A	1650B2A	1850B2A	2050B2A
A+B+C+D	200-1000	200-1200	200-1400	200-1600	280-1800	280-2000
C+D Min	100	100	100	100	140	140
D Min	25	25	25	25	25	25
F Min	100	100	100	100	100	100
G	150-800	150-800	150-800	150-800	150-800	150-800

Common box type and size ：(mm)
Model	1050B2A	1250B2A	1450B2A	1650B2A	1850B2A	2050B2A
A+B+C+D	200-1000	200-1200	200-1400	200-1600	280-1800	280-2000
C+D Min	100	100	100	100	140	140
D Min	25	25	25	25	25	25
F Min	100	100	100	100	100	100
G	150-800	150-800	150-800	150-800	150-800	150-800
